Khoom Description

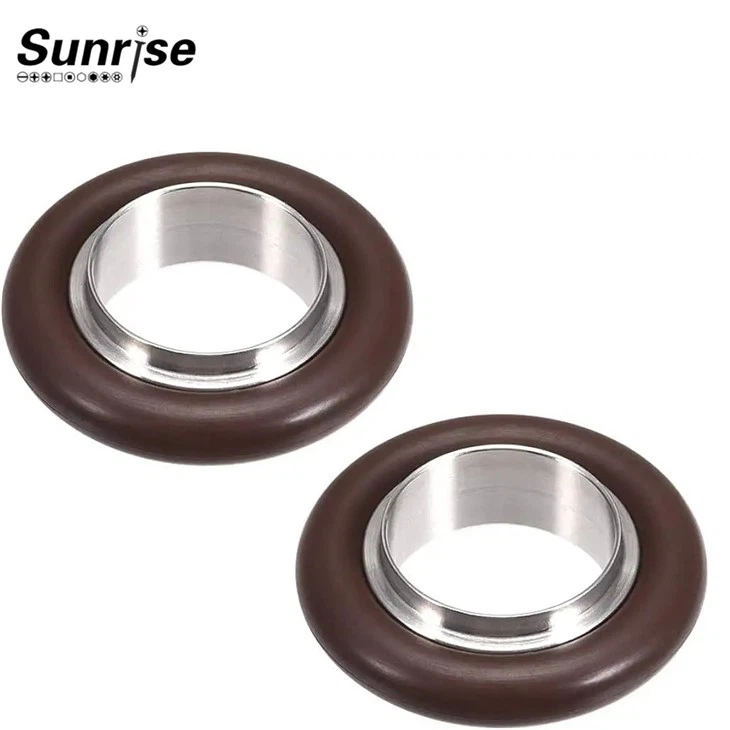

Centering Outer O-Ring rau Nqus Yeeb Nkab Sealing
Lub Centering Outer O-Ring yog tsim los tshwj xeeb rau kev siv lub tshuab nqus tsev vacuum sealing daim ntaub ntawv, muab ib tug txhim khu kev qha thiab ruaj ntseg foob nyob rau hauv high-lub tshuab nqus tsev ib puag ncig. Qhov no precision-engineered O-Nplhaib ua kom pom kev sib haum xeeb thiab nruab nrab ntawm cov kav dej nqus tsev, txo cov xau thiab tswj kev ncaj ncees ntawm lub tshuab nqus tsev. Ua los ntawm cov ntaub ntawv zoo elastomeric, nws muaj kev tiv thaiv zoo rau lub tshuab nqus tsev thiab kev ntxhov siab.
Technical Specifications:
Cov khoom siv xaiv:
Viton (FKM): Zoo heev rau qhov kub thiab txias thiab tshuaj tiv thaiv
Silicone (VMQ): Zoo tagnrho rau huab cua hloov pauv
EPDM: Haum rau kev sib khi dav dav thiab kev siv lub tshuab nqus tsev
Qhov Loj Loj:Customizable kom haum ntau yam yeeb nkab diameters thiab sealing yuav tsum
Hardness:Feem ntau 60 txog 90 Ntug A
Qhov kub thiab txias:
Viton (FKM): -20 degree rau 200 degree (-4 degree F txog 392 degree F)
Silicone (VMQ): -60 degree rau 250 degree (-76 degree F txog 482 degree F)
EPDM: -40 degree rau 150 degree (-40 degree F txog 302 degree F)
Vacuum Resistance:Siv tau zoo hauv qhov chaw nqus tsev siab txog 10^-9 Torr
Cov txheej txheem khoom
Kev xaiv khoom siv:
Peb siv cov khoom zoo elastomeric xws li Viton (FKM), Silicone (VMQ), thiab EPDM, xaiv rau lawv cov kev tiv thaiv zoo rau lub tshuab nqus tsev thiab ib puag ncig.
Kev sib xyaw ua ke:
Cov ntaub ntawv elastomer xaiv tau sib xyaw nrog cov khoom siv tshwj xeeb los txhim kho lawv lub tshuab nqus tsev, elasticity, thiab durability.
Moulding:
Cov khoom siv sib xyaw yog txhaj rau hauv cov pwm ua haujlwm siab los ua O-Rings nrog qhov ntev thiab qhov profile.
Vulcanization:
Lub molded O-Rings tau dhau los ua cov txheej txheem vulcanization, uas muaj cov cua sov los txhim kho cov khoom siv zog, yooj, thiab tsis kam mus rau lub tshuab nqus tsev.
Kev Tswj Xyuas Zoo:
Txhua O-Ring raug tshuaj xyuas kom zoo rau qhov raug qhov tseeb, qhov tsis xws luag, thiab kev ua haujlwm hauv lub tshuab nqus tsev.
Cov khoom siv
Lub tshuab nqus tsev vacuum:
Laboratory thiab chaw tshawb fawb
Kev tsim khoom semiconductor
Lub tshuab nqus tsev twj tso kua mis
Lub tshuab nqus tsev vacuum
Yeeb Nkab Sealing:
Xyuas kom muaj kev sib txuas ntawm cov pa taws hauv lub tshuab nqus tsev vacuum
Centering thiab aligning yeeb nkab nyob rau hauv daim ntawv thov nqus tsev vacuum
FAQ
1. Cov ntaub ntawv dab tsi muaj nyob rau Centering Outer O-Ring?
Peb muab Viton (FKM) rau qhov kub thiab txias thiab tshuaj tiv thaiv, Silicone (VMQ) rau qhov kub thiab txias, thiab EPDM rau kev siv lub tshuab nqus tsev.
2. Lub tshuab nqus tsev siab tshaj plaws yog dab tsi O-Ring tuaj yeem tiv taus?
Peb O-Rings yog tsim los ua haujlwm zoo hauv qhov chaw nqus tsev siab txog 10^-9 Torr.
3. Cov O-Rings puas tuaj yeem hloov kho rau cov yeeb nkab sib txawv?
Yog lawm, O-Rings tuaj yeem hloov kho kom haum rau ntau yam ntawm cov yeeb nkab diameters thiab cov kev cai sib khi.
4. Dab tsi yog qhov kub ntawm qhov sib txawv O-Ring cov ntaub ntawv txhawb nqa?
Viton (FKM): -20 degree rau 200 degree (-4 degree F txog 392 degree F)
Silicone (VMQ): -60 degree rau 250 degree (-76 degree F txog 482 degree F)
EPDM: -40 degree rau 150 degree (-40 degree F txog 302 degree F)
5. Kuv yuav khaws qhov Centering Outer O-Rings li cas?
Khaws O-Rings nyob rau hauv qhov chaw txias, qhuav kom deb ntawm tshav ntuj ncaj qha thiab huab cua kub kom tswj tau lawv cov elasticity thiab kev ua haujlwm.
6. Kuv yuav ua li cas thiaj li ua tau zoo ntawm kev teeb tsa O-Ring hauv lub tshuab nqus tsev?
Xyuas kom meej tias O-Ring yog qhov loj me me rau cov yeeb nkab thiab qhov chaw sib khi yog huv thiab du. Kev sib raug zoo thaum lub sij hawm installation yog qhov tseem ceeb rau kev sib khi zoo.
7. Dab tsi yog cov txiaj ntsig tseem ceeb ntawm kev siv Rock Well Engineering's Centering Outer O-Ring?
Peb cov O-Rings muab kev ruaj ntseg sealing nyob rau hauv high-lub tshuab nqus tsev ib puag ncig, kom ntseeg tau tias tsawg to thiab tswj kev ua tau zoo. Lawv yog engineered rau durability thiab precision, ua rau lawv zoo tagnrho rau kev siv lub tshuab nqus tsev tseem ceeb.
